Introduction
What Is a Wiper Motor?

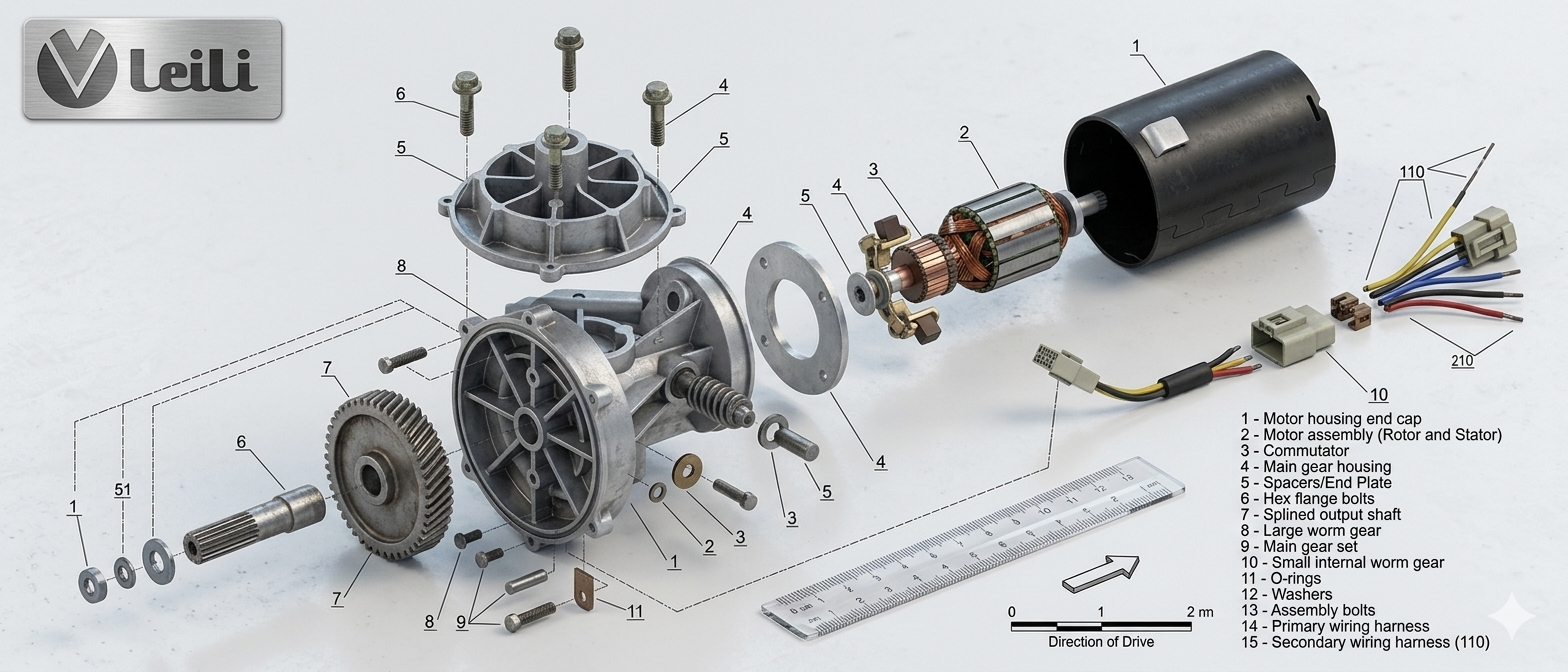

How Does a Wiper Motor Work?
- The driver turns on the wiper switch.
- The vehicle control system activates the circuit.
- Power reaches the wiper motor.
- The motor rotates through its internal gear mechanism.
- The crank arm drives the wiper linkage.
- The linkage moves the wiper arms.
- The wiper blades clean the windshield.
- The park function returns the blades to the correct resting position.
The park function is important. Without it, the wipers may stop in the middle of the windshield after being turned off.
Main Types of Wiper Motors
Different vehicles require different wiper motor designs. For aftermarket buyers, identifying the correct type is the first step before confirming OE numbers and fitment.
Front Windshield Wiper Motor
The front wiper motor controls the main windshield wipers. It is usually installed under the cowl panel near the bottom of the windshield. This is the most common wiper motor type in the replacement parts market.
Rear Wiper Motor
Rear wiper motors are commonly used on SUVs, hatchbacks, vans, MPVs, and some commercial vehicles. They are smaller than front wiper motors but still require accurate fitment.
Heavy-Duty Wiper Motor
Heavy-duty wiper motors are designed for trucks, buses, agricultural machines, construction equipment, and special vehicles. These applications often require higher torque, stronger housing, better sealing, and longer working life.
12V and 24V Wiper Motors
Voltage is one of the most important specifications. Passenger cars usually use 12V systems, while commercial and heavy-duty vehicles may use 24V systems. Using the wrong voltage can cause poor performance, overheating, or product failure.

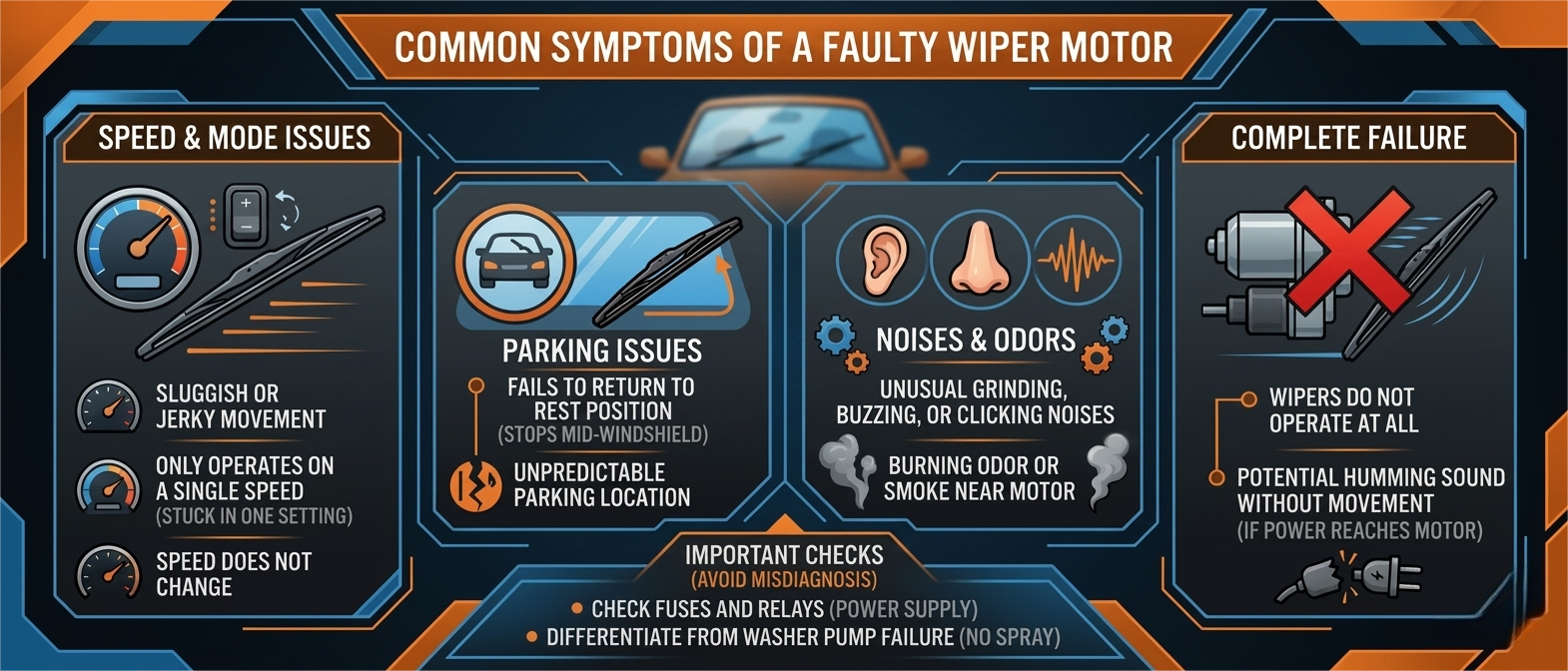

Common Symptoms of a Bad Wiper Motor
A failing wiper motor usually gives warning signs before it stops working completely. These symptoms are useful for both repair technicians and parts sellers.
1. Wipers Do Not Move
If the wipers do not move at all, the cause may be a failed motor, blown fuse, faulty relay, damaged switch, wiring problem, or poor ground connection. Before replacing the motor, the electrical circuit should be checked.
2. Wipers Move Slowly
Slow wiper movement may happen when the motor becomes weak or when the linkage has too much resistance. In some cases, dry or worn wiper blades can also increase the load on the motor.
3. Wipers Stop in the Wrong Position
If the wipers stop in the middle of the windshield or fail to return to the bottom position, the park mechanism may be damaged. This problem is common when the internal park switch or gear contact fails.
4. Wipers Work on Only One Speed
If low speed works but high speed does not, or intermittent mode fails, the issue may be related to the motor circuit, relay, switch, or vehicle control module.
5. Motor Makes Noise but Wipers Do Not Move
If the motor can be heard but the wiper arms remain still, the problem is often mechanical. The linkage may be loose, disconnected, worn, or broken.
6. Wipers Stop Randomly While Driving
Intermittent failure can be caused by a weak motor, damaged wiring, poor connector contact, overheating, or a faulty relay. This type of problem should be repaired quickly because it can create serious visibility risks during rain.
Wiper Motor vs Wiper Linkage
Many customers confuse a bad wiper motor with a bad wiper linkage. These two parts work together, but they are not the same.
The wiper motor provides power. The wiper linkage transfers that power to the wiper arms.
If the motor is silent and receives no response, the issue may be electrical or motor-related. If the motor runs but the wiper arms do not move, the linkage may be damaged.
For distributors and repair shops, this difference matters because replacing the wrong part can lead to unnecessary returns and customer complaints.
Why Do Wiper Motors Fail?
Wiper motors are exposed to vibration, moisture, temperature changes, electrical load, and mechanical resistance. Over time, these conditions can cause failure.
- Long-term wear
- Water entering the motor housing
- Corroded electrical connectors
- Frozen wiper blades
- Seized wiper linkage
- Overloaded motor
- Poor ground connection
- Damaged relay
- Internal gear wear
- Incorrect installation
- Wrong voltage application
In winter markets, frozen wiper blades are a major cause of motor overload. If the driver turns on the wipers while the blades are stuck to the windshield, the motor and linkage may be damaged.

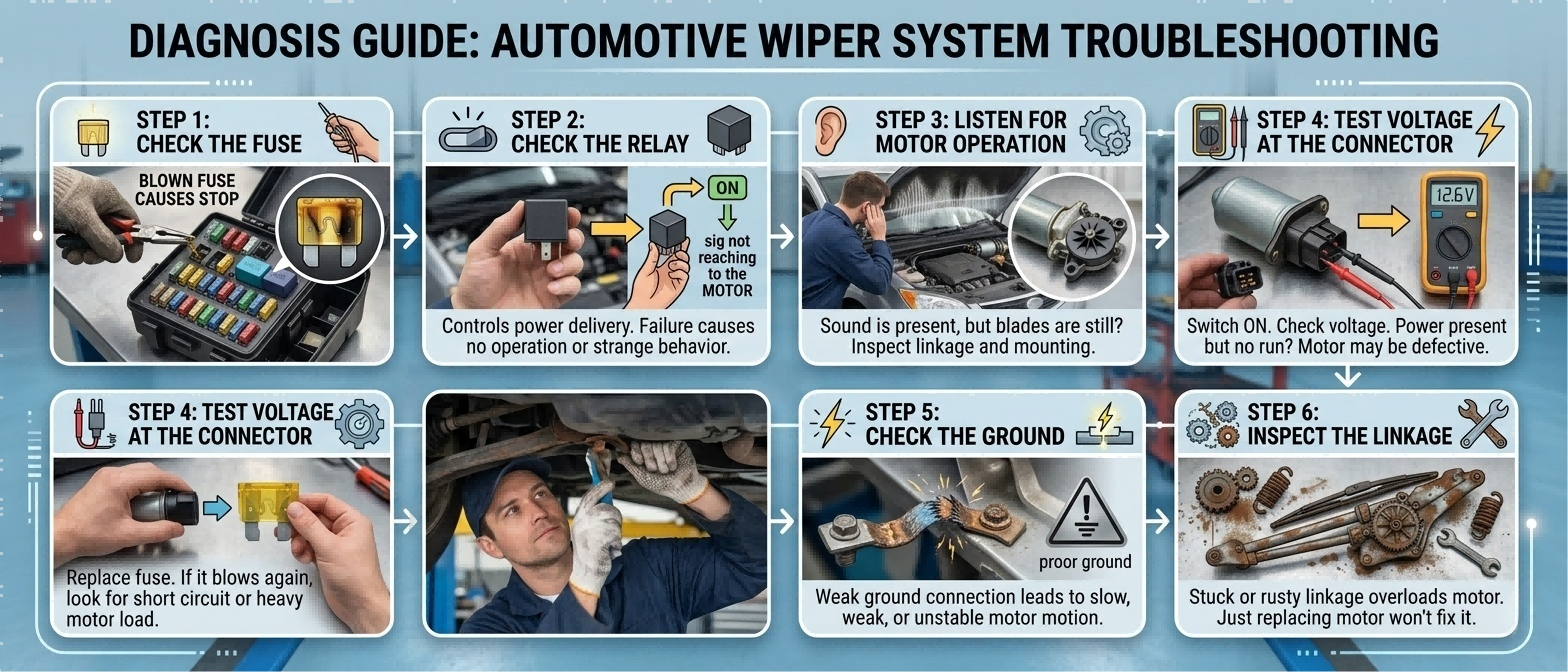

How to Test a Wiper Motor
Testing is important before replacement. A wiper system has several connected parts, so the motor should not be blamed before basic checks are completed.
Step 1: Check the Fuse
A blown fuse can stop the wiper system completely. If the new fuse blows again, there may be a short circuit or excessive motor load.
Step 2: Check the Relay
The relay controls power delivery to the motor. A failed relay may cause the wipers to stop working or operate incorrectly.
Step 3: Listen for Motor Operation
If the motor makes sound but the wipers do not move, inspect the linkage, wiper arms, and mounting points.
Step 4: Test Voltage at the Connector
Use a multimeter to check whether the motor receives proper voltage when the wiper switch is turned on. If voltage is present but the motor does not run, the motor may be defective.
Step 5: Check the Ground
A poor ground connection can cause slow, weak, or unstable motor operation.
Step 6: Inspect the Linkage
A stuck or rusty linkage can overload the motor. In this case, replacing only the motor may not solve the problem.
When Should a Wiper Motor Be Replaced?
A wiper motor should be replaced when testing confirms that the motor cannot operate correctly under normal power and load conditions.
- The motor receives power but does not run.
- The motor runs weakly after linkage inspection.
- The park function fails.
- Internal gears are damaged.
- The motor overheats.
- Water has entered the motor housing.
- The connector or internal circuit is badly corroded.
For safety reasons, a faulty wiper motor should not be ignored. Clear visibility is essential for daily driving, highway use, commercial transport, and bad-weather operation.
How to Choose the Right Wiper Motor in 2026
For aftermarket buyers, selecting a wiper motor is not only about matching appearance. A reliable replacement part must meet electrical, mechanical, and fitment requirements.
- Vehicle make, model, and year
- Left-hand drive or right-hand drive application
- Front or rear wiper motor
- 12V or 24V voltage
- OE number
- Connector type
- Mounting hole position
- Shaft design
- Motor rotation direction
- Park function compatibility
- Linkage compatibility
- Packaging requirements
- Market quality standard
OE number matching is especially important. Two wiper motors may look similar but have different connectors, mounting angles, or internal functions.
What Aftermarket Buyers Should Pay Attention To
For wholesalers, importers, and distributors, product quality affects more than one vehicle repair. It affects customer trust, warranty cost, and long-term cooperation.
A good wiper motor supplier should be able to provide accurate product information, stable quality control, clear OE cross-reference support, reliable packaging, consistent batch supply, professional export experience, fast communication, and support for different vehicle applications.
Low-cost products may seem attractive at first, but poor fitment, weak motor torque, unstable park function, or high return rates can increase total business cost.

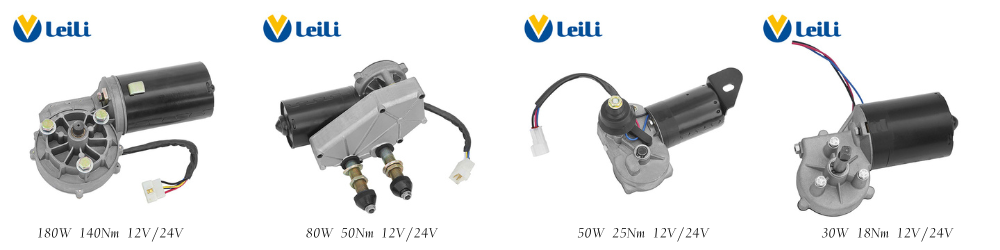

Leili Wiper Motor Solutions
Leili provides aftermarket wiper motor solutions for customers who need reliable replacement parts for different markets.
- Front windshield wiper motors
- Rear wiper motors
- 12V and 24V applications
- OE number matching
- Passenger car and commercial vehicle coverage
- Export packaging support
- Bulk order support
- Product consultation for distributors and wholesalers
For Leili, a good wiper motor should not only fit the vehicle. It should operate smoothly, return to the correct park position, withstand normal weather conditions, and support stable aftermarket performance.
Wiper Motor Maintenance Tips
Proper maintenance can extend the life of the wiper motor and reduce unexpected failure.
- Replace worn wiper blades regularly.
- Do not use wipers on a dry windshield for long periods.
- Clear ice and snow before turning on the wipers.
- Remove leaves and debris near the windshield cowl.
- Check the wiper linkage during service.
- Keep electrical connectors clean and dry.
- Use the correct replacement motor.
- Avoid forcing stuck wiper arms.
For fleet operators and commercial vehicles, regular inspection is especially important because wiper failure can affect safety and operating schedules.
FAQ About Wiper Motors
What does a wiper motor do?
A wiper motor powers the windshield wiper system. It moves the wiper arms and helps the blades clean rain, snow, dirt, and debris from the windshield.
What are the signs of a bad wiper motor?
Common signs include no wiper movement, slow movement, wrong park position, only one speed working, motor noise without arm movement, or random stopping.
Can a bad wiper motor damage other parts?
Yes. A weak or overloaded motor can affect the linkage, relay, fuse, and electrical circuit. A seized linkage can also damage a new motor if not repaired.
Is the wiper motor the same as the wiper linkage?
No. The wiper motor provides power, while the linkage transfers that power to the wiper arms.
Can I replace only the wiper motor?
Yes, if the linkage, wiring, relay, fuse, and switch are in good condition. If the linkage is seized or damaged, it should be repaired or replaced too.
How long does a wiper motor last?
Service life depends on product quality, weather conditions, usage frequency, linkage condition, and maintenance. Heavy rain, snow, dust, and frozen blades can shorten its life.
How do I choose a wiper motor supplier?
Choose a supplier that can provide OE matching, stable product quality, clear application information, proper packaging, and professional aftermarket support.
Conclusion
A wiper motor is a key safety component in the vehicle windshield wiper system. It powers the wiper arms, supports clear visibility, and helps drivers operate safely in rain, snow, and difficult road conditions.
For repair shops, wholesalers, importers, and aftermarket distributors, understanding wiper motor function, failure symptoms, testing methods, and sourcing standards can help reduce wrong orders and improve customer satisfaction.
In 2026, choosing the right wiper motor is not only about price. It is about fitment accuracy, stable operation, reliable supply, and long-term market trust.
If you are looking for aftermarket wiper motor solutions, Leili can help you match suitable products for your vehicle applications and target market.
